JIATAI

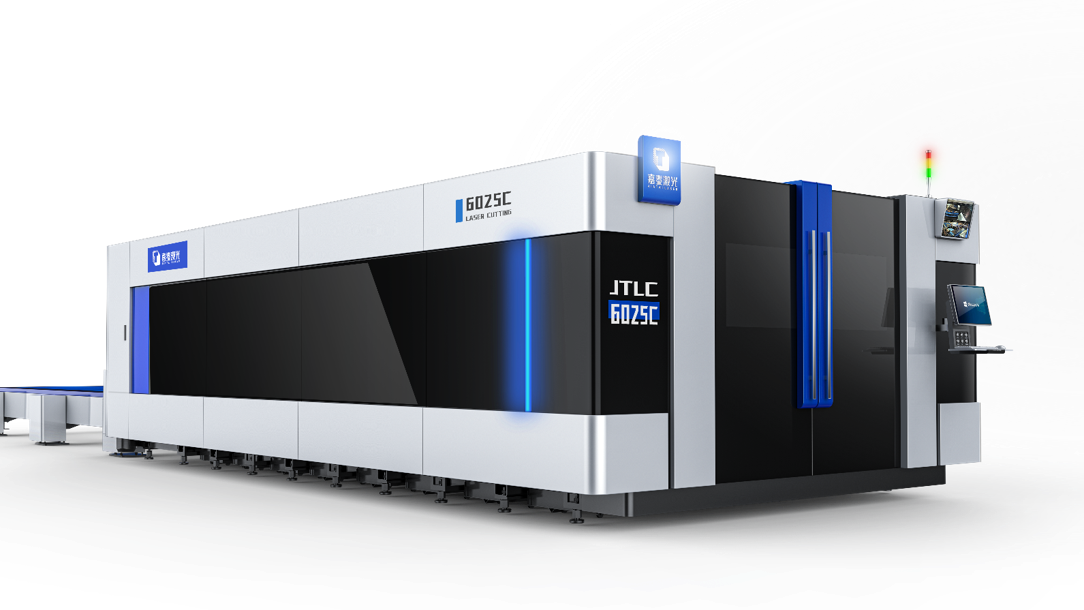

JIATAI C Series – Plate Laser Cutting Machine

Metal Laser Cutting | Sheet Metal Laser Cutting

6000W - 40000W

Mesin laser cutting plate JIATAI seri C, daya tinggi dengan kapasitas muat besar, struktur gantry dual-drive dan sistem penghisap debu berzona.

Penawaran

Daya Tinggi dengan Kapasitas Muat Besar

Mesin berdaya tinggi dengan kapasitas muat besar.

Struktur Gantry Dual-Drive

Struktur gantry dual-drive, kecepatan cepat dan presisi tinggi.

Sistem Kontrol Kustom

Sistem kontrol kustom dengan fungsi aplikasi cutting cerdas.

Penghisap Debu Berzona

Dilengkapi sistem penghisap debu berzona.

Model Processing Area Laser Power XY Axis Max Positioning Speed XY Axis Positioning Accuracy XY Axis Repeated Positioning Accuracy Max. Acceleration
JTLC3015 3000mm*1500mm 6000W-40000W X:131m/min, Y:150m/min ±0.03mm/m ±0.025mm 2.0G
JTLC4020 4000mm*2000mm 6000W-40000W X:131m/min, Y:150m/min ±0.03mm/m ±0.025mm 2.0G
JTLC6025 8000mm*2500mm 6000W-40000W X:131m/min, Y:150m/min ±0.03mm/m ±0.025mm 2.0G
JTLC8025 8000mm*2500mm 6000W-40000W X:131m/min, Y:150m/min ±0.03mm/m ±0.025mm 2.0G
