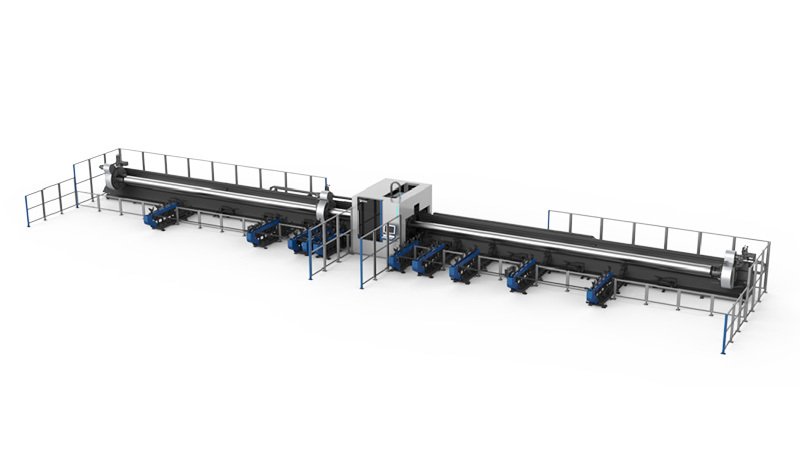

JIATAI FH Series – Pipe Laser Cutting Machine
Metal Laser Cutting | Pipe Metal Laser Cutting
6000W - 12000W
Mesin laser cutting pipe heavy-load dengan chuck self-centering cerdas (beban hingga 1800kg) dan 3D fiber cutting head, daya 6000W-12000W.
Laser Pipe Cutting Machine FH Series
Sistem chuck self-centering cerdas berbeban tinggi hasil pengembangan mandiri, kapasitas beban chuck hingga 1800kg.
3D fiber cutting head untuk memenuhi pemrosesan kompleks pada berbagai jenis pipa dan profil.
Sistem cerdas dilengkapi fungsi height follow-up, smart cutback, break point continuation cutting, edge searching, ATC drilling and tapping, pengukuran panjang pipa, double axes cutting, expert database, dan lainnya untuk mewujudkan pemotongan cerdas.
| Model | Spesifikasi |
|---|---|
| Model | JTLG12043 |
| Processing Pipe Diameter | Round pipe Φ30mm-426mm*12400mm; Square pipe 30mm*30mm-300mm*300mm*12400mm |
| Laser Power | 6000W-12000W |
| Max. Feeding Speed | 25m/min |
| Fast Moving Speed | XU/V: 36.2m/min, Y: 60m/min, Z: 60m/min, W: 60m/min, A: 3600°/min, B: 36rpm/min |
| Load | 1400kg |
