JIATAI

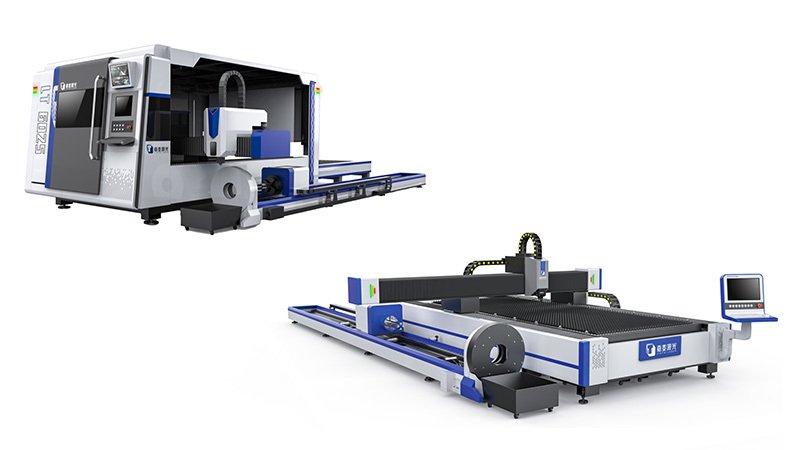

JIATAI Plate and Pipe Integrated Series – Laser Cutting Machine

Metal Laser Cutting | Sheet & Pipe Laser Cutting

1500W - 6000W

Mesin laser cutting 2-in-1 untuk plate dan pipe (1500W-6000W), hemat tempat dengan sistem switching mudah antara mode potong plat dan pipa.

Penawaran

Plate and Pipe Integrated Laser Cutting Machine Series

Dwiguna untuk pipa dan lembaran (tube and sheet dual-purpose), menempati area yang kecil.

Switching dua sistem antara mode potong bidang datar dan pipa, pemrosesan fleksibel, pengoperasian mudah.

Performa stabil, pengoperasian sederhana dan mudah dipelajari.

Biaya operasional rendah dan perawatan mudah!

Parameter JTLT3015 JTLT4020 JTLT6025
Plane Cutting Area 3000mm*1500mm 4000mm*2000mm 6000mm*2500mm
Tube Cutting – Round Tube Φ30mm-Φ350mm*6100mm Φ30mm-Φ350mm*6100mm Φ30mm-Φ350mm*6100mm
Tube Cutting – Square Tube 30mm*30mm-250mm*250mm*6100mm 30mm*30mm-250mm*250mm*6100mm 30mm*30mm-250mm*250mm*6100mm
Laser Power 1500W-6000W
X-Axis Travel 1500mm 2000mm 2500mm
Y-Axis Travel (Plane) 3000mm 4000mm 6000mm
Y-Axis Travel (Tube) 6100mm 6100mm 6100mm
Max. Positioning Speed (Plane) X:88m/min, Y:74m/min X:88m/min, Y:74m/min X:88m/min, Y:74m/min
Max. Positioning Speed (Tube) 50m/min 50m/min 50m/min
Positioning Accuracy ±0.05mm/m
Repeated Positioning Accuracy ±0.05mm
Max. Acceleration 0.5G
