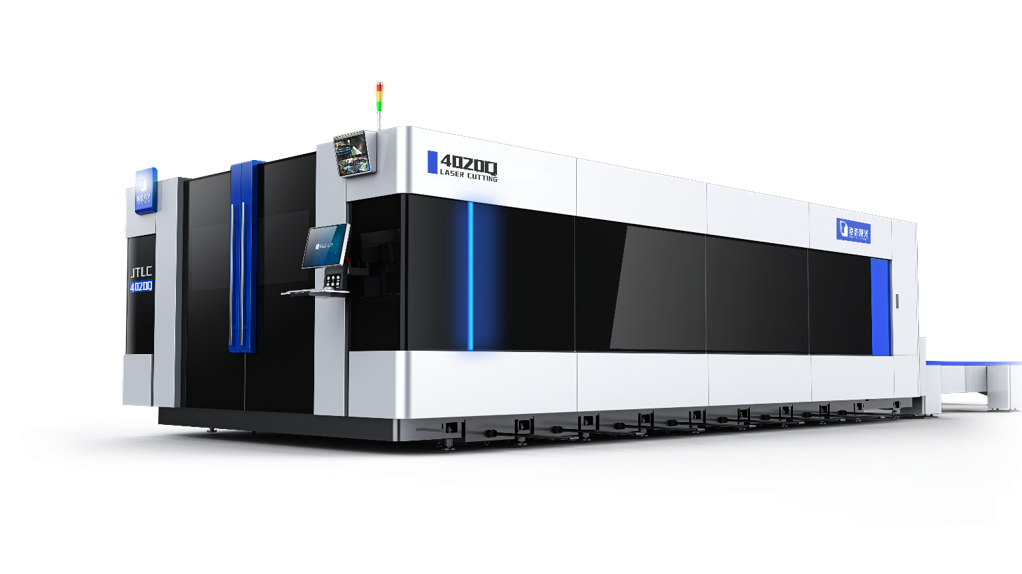

JIATAI Q Series – Plate Laser Cutting Machine

Metal Laser Cutting | Sheet Metal Laser Cutting

≤20000W

Mesin laser cutting plate JIATAI seri Q, seri khusus industri yang hemat biaya, tersedia dalam 6 ukuran format dari 3015 hingga 12025.

Seri khusus industri, hemat biaya!

Performa stabil, mudah dipelajari!

Desain terintegrasi dan menempati area yang kecil!

Biaya operasional rendah dan perawatan mudah!

Model	Processing Area	Laser Power	XY Axis Max Positioning Speed	XY Axis Positioning Accuracy	XY Axis Repeated Positioning Accuracy	Max. Acceleration
JTLC3015	3000mm*1500mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
JTLC4020	4000mm*2000mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
JTLC6025	6000mm*2500mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
JTLC8025	8000mm*2500mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
JTLC10025	10000mm*2500mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
JTLC12025	12000mm*2500mm	≤20000W	X:131m/min, Y:150m/min	±0.03mm/m	±0.03mm	2.0G
