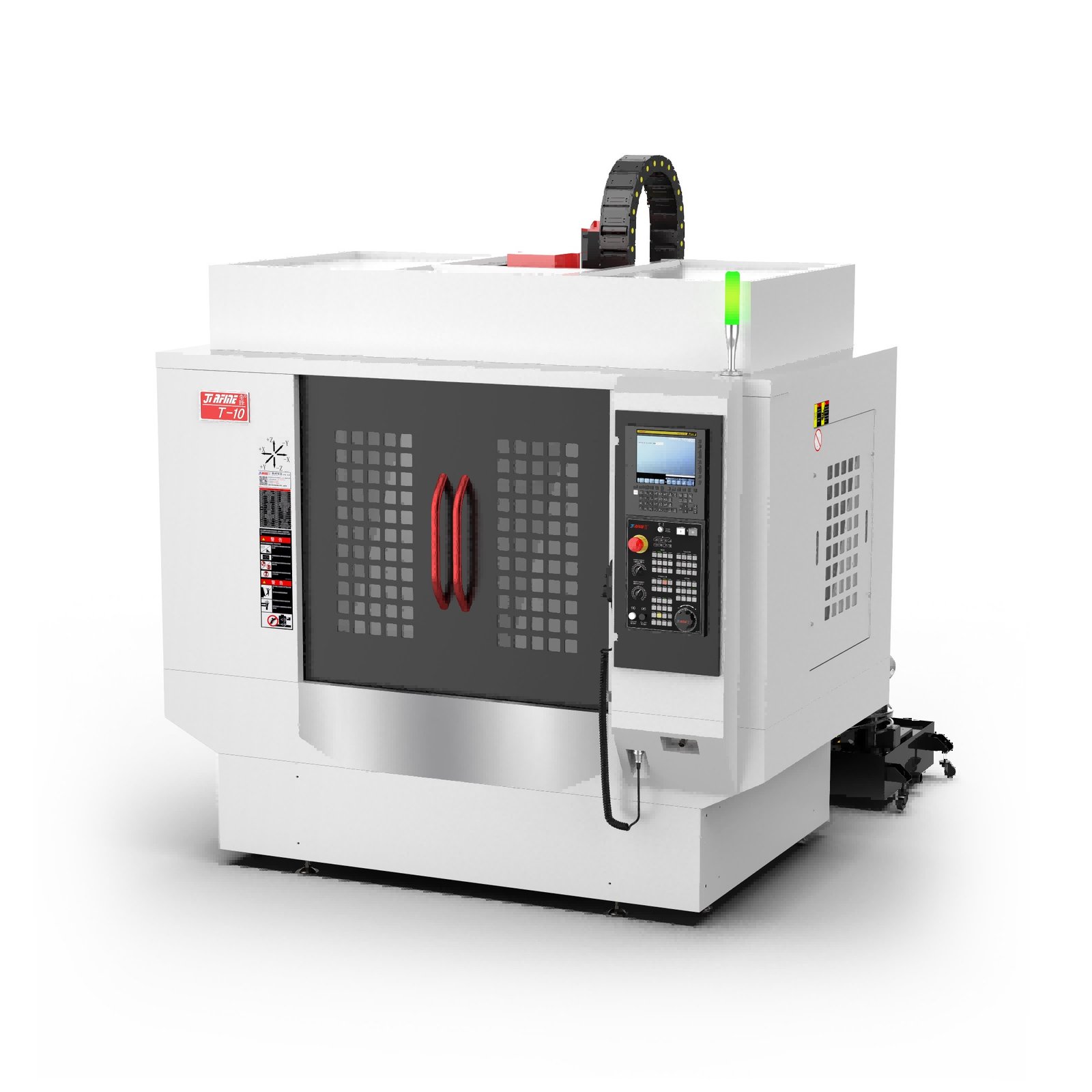

JIRFINE T-10 Series – High Speed Drilling & Milling Machining Center

CNC Machine | Drilling & Milling Machine

1000x500x300mm

Mesin drilling & milling desain golden ratio span (spindle 12000rpm), travel X/Y ekstra besar untuk workpiece berukuran besar dengan hasil tapping presisi tinggi.

Penawaran

High Speed Drilling & Milling Machining Center

Aplikasi luas, kekakuan tinggi, fleksibilitas tinggi, dan ekstensibilitas tinggi.

Desain Golden Ratio Span

Desain golden ratio span, pemrosesan kecepatan tinggi dan presisi tinggi lebih terjamin.

Desain Spindle Direct Drive

Desain spindle direct drive, secara langsung mengeluarkan kecepatan dari poros motor untuk mendapatkan hasil tapping berkualitas tinggi.

Travel X/Y-Axis Ekstra Besar

Travel X/Y-axis yang sangat besar menerobos keterbatasan mesin drilling dan tapping konvensional yang tidak mampu memproses workpiece berukuran besar.

Kategori Item Unit Spesifikasi
Travel X axis travel mm 1000
Y axis travel mm 500
Z axis travel mm 300
Distance from spindle nose to worktable mm 180-480
Distance from spindle center to column mm 550
Workbench Workbench size mm 1100×500
T-slot (size x slot no. x space) mm 14x5x80
Maximum load of workbench kg 400
Spindle Speed rpm 12000
Spindle taper # BT30
Transfer method # Direct drive
Feed Three-axis cutting feed mm/min 1-10000
Three-axis rapid feed m/min 48/48/48
Precision Positioning precision mm 0.008/0.005/0.005
Repeatability mm 0.005/0.003/0.003
Tool changing system Number of tools pcs 21
Max tool weight kg 3
Max tool length mm 250
Tool diameter (full tool/neighbor empty tool) mm 100/140
CNC system Control system # FANUC 0I-MF
Motor Power Spindle motor power kW 3.7/13
Three-axis motor power kW 2.7/2.7/3.0
Others Required air pressure kgf/cm³ 6
Electricity demand KVA 20
Net weight kg –
Dimensions (L x W x H) mm 2460x2860x2420
