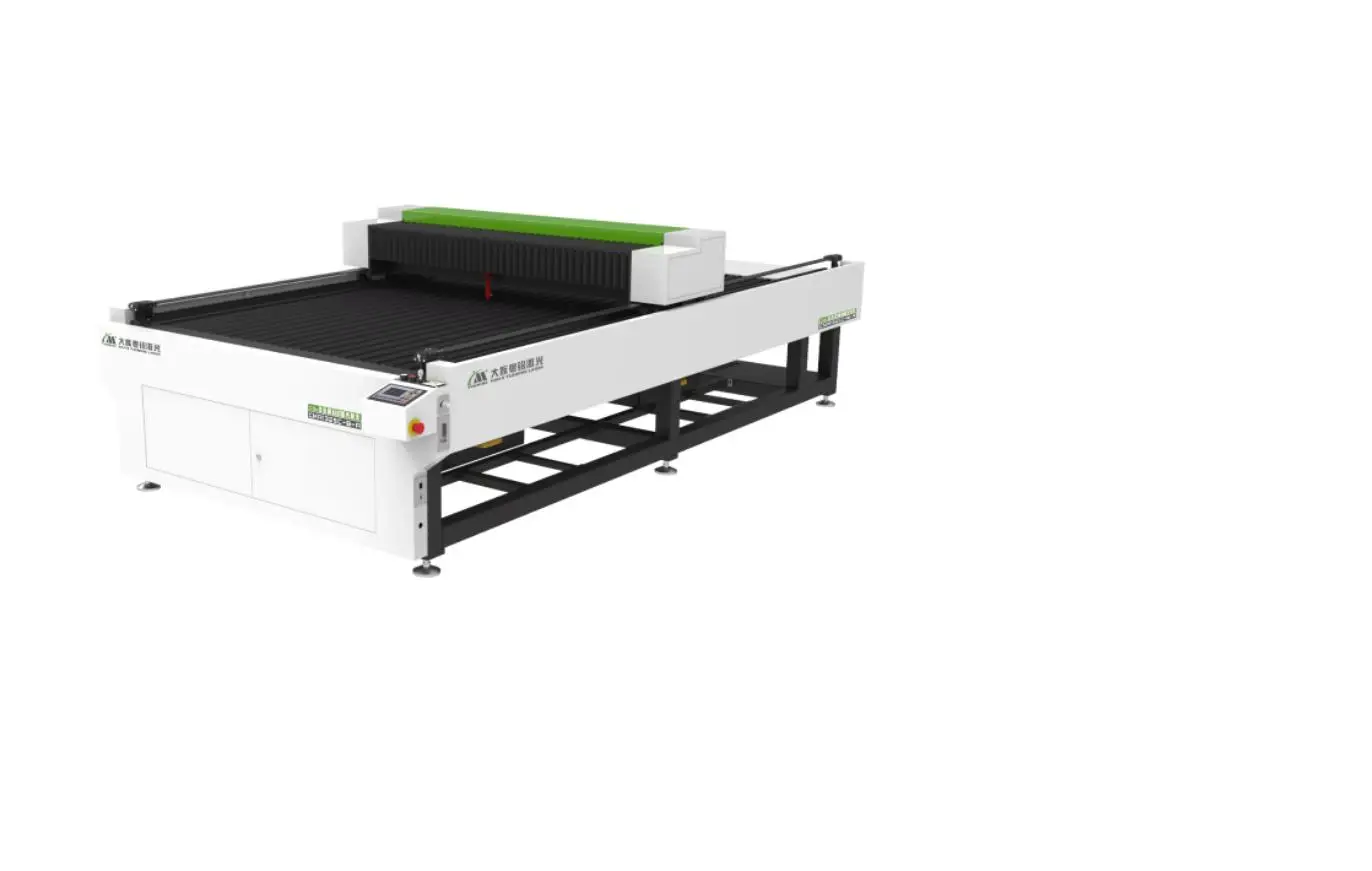

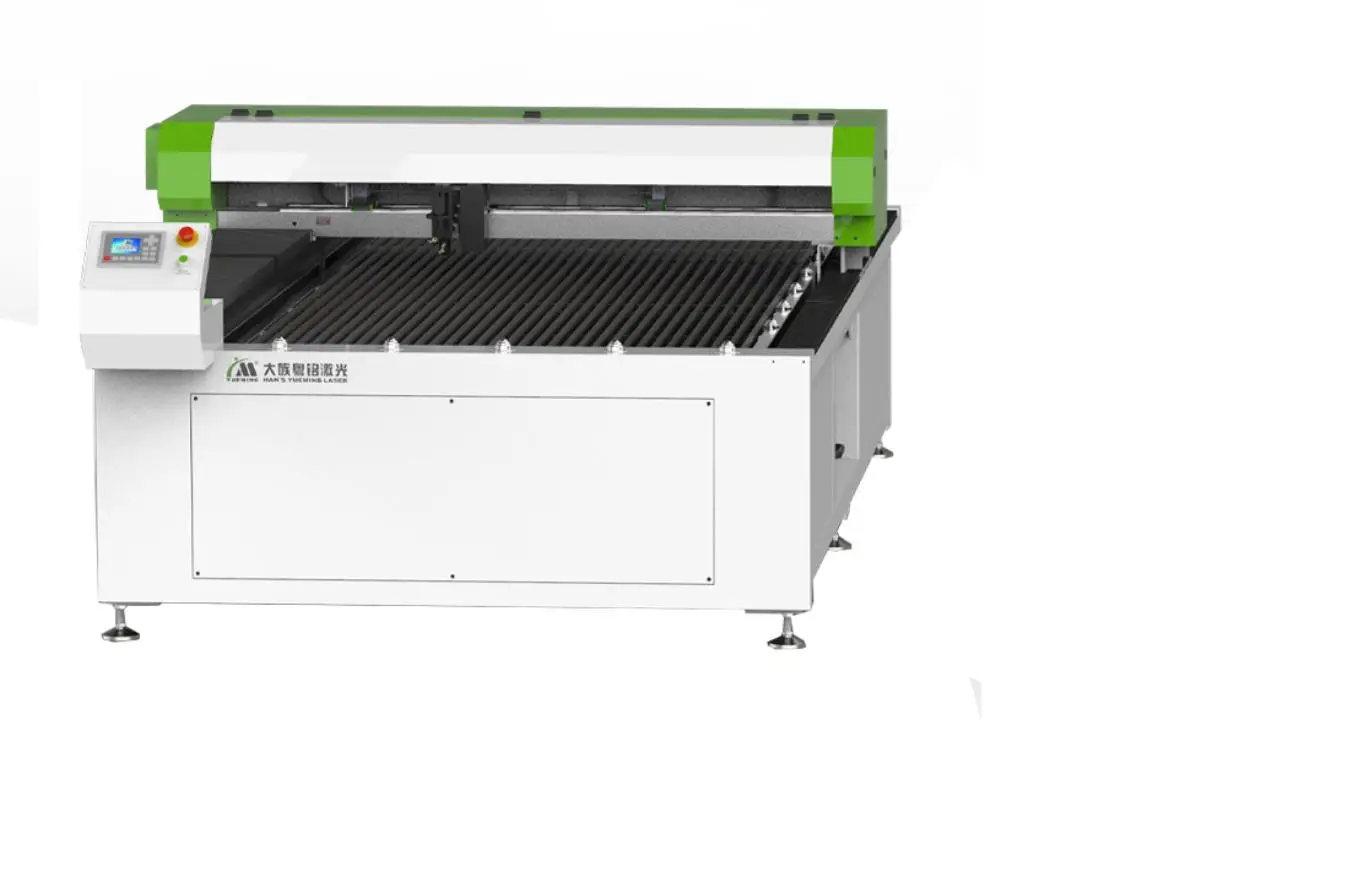

CMA1325C-B-A

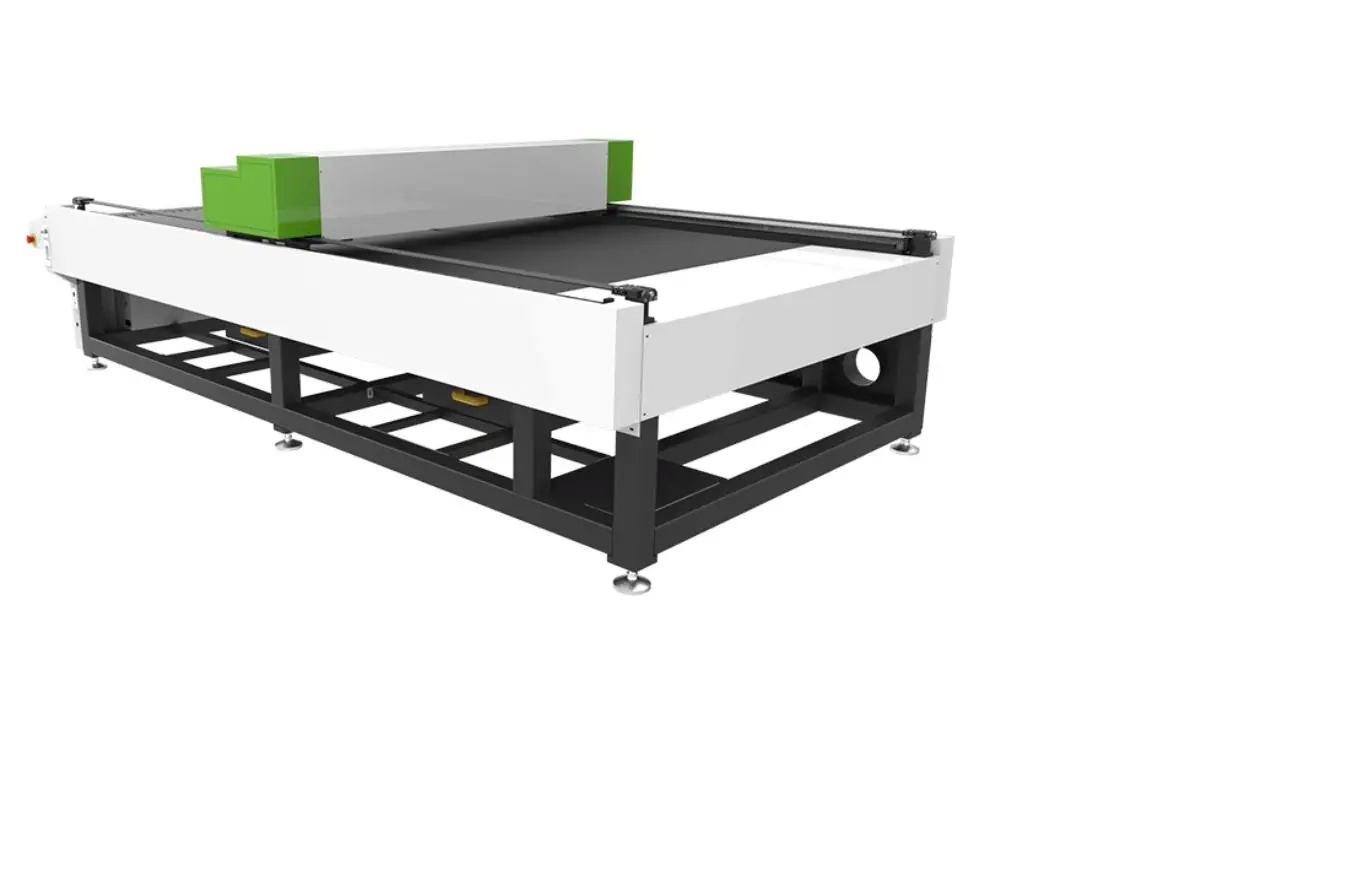

Non-Metal Plate Laser Cutting Machine Series
Hansyueming · Built for Signage, Acrylic & Panel Cutting · Working Area 1300 × 2500 mm
Designed with a 1300×2500mm working area mainly for the signage industry, this series handles acrylic, plywood, and MDF cutting, and is offered in several configurations to match different customer requirements.
Key Features
Reinforced Welded Frame
The machine body uses a reinforced welded frame that undergoes 600°C heat treatment and vibration aging to relieve internal stress, then precision milling to keep deformation tolerance within ±0.02mm.
Lightweight, High-Strength Beam
A high-strength aluminum alloy beam keeps the gantry light, allowing faster and smoother movement across the entire working area.
Wide Material Compatibility
Suitable for MDF, acrylic, and a range of other non-metal panel materials commonly used in signage, interior decoration, and display production.
Technical Parameters
| Parameter | CMA1325C-B-A | CMA1325C-G-H | CMH1325C-G-A |
|---|---|---|---|
| Laser Power (W) | 80–180 | 130–350 | 130–300 |
| Working Area (mm) | 1300×2500 | 1300×2500 | 1300×2500 |
| Overall Dimension (mm) | 3530×1850×1150 | 3850×2190×1200 | 3630×2000×1220 |
| Weight (kg) | 600 | 1800 | 1200 |
| Positioning Accuracy (mm) | ±0.1/1000 | ±0.05/1000 | ±0.05/1000 |
| Repeated Positioning Accuracy (mm) | ±0.05/1000 | ±0.03/1000 | ±0.02/1000 |
| Supply Voltage | 220V/50Hz | 220V (Aux: 380V)/50Hz | 220V/50Hz |
| Working Environment | Clean, low dust. Temp 5–40°C, Humidity 5–80% | ||
