CMH1325C-G-B

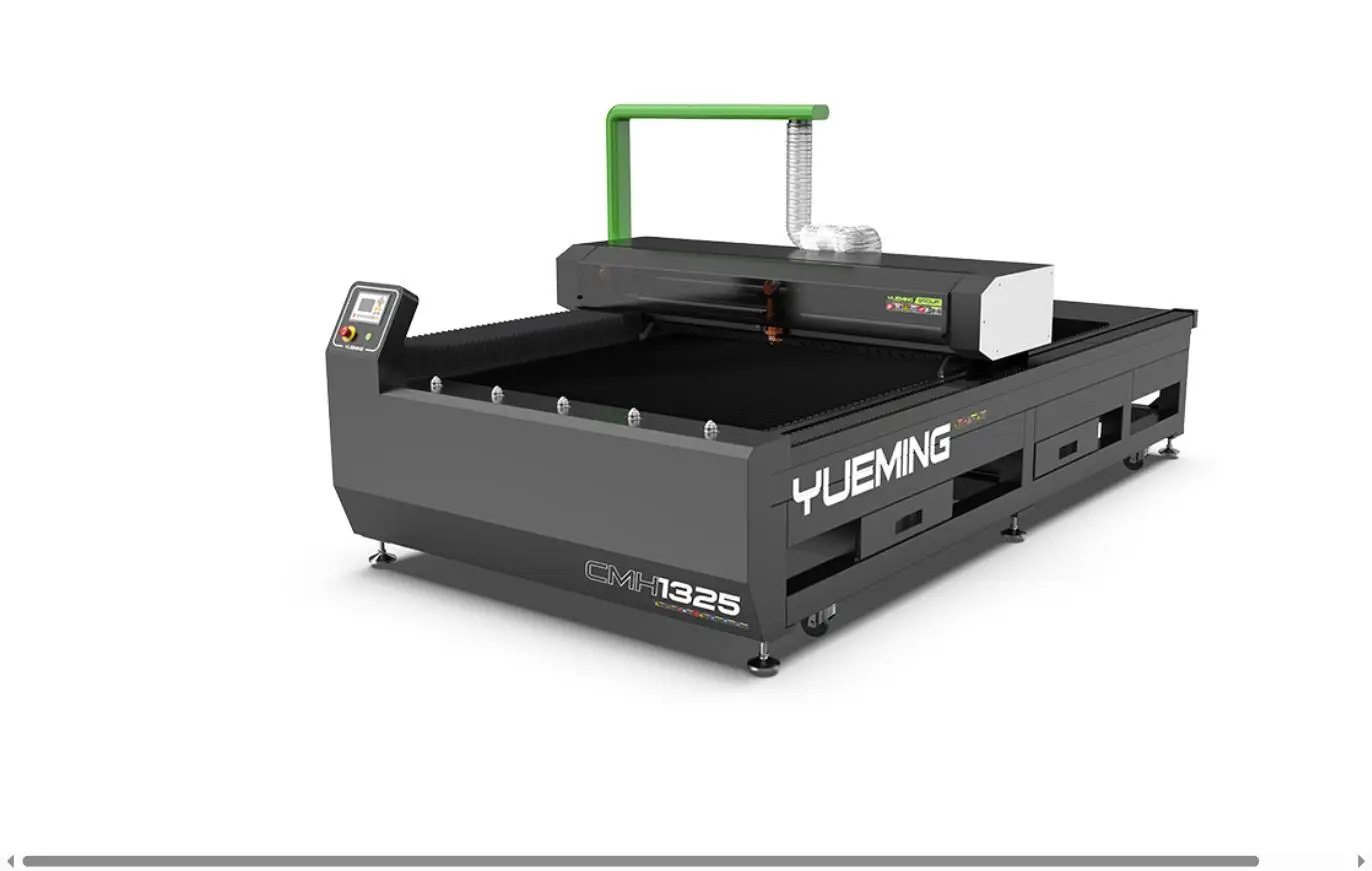

Plate CO2 Precision Laser Cutting Bed Series
Hansyueming · Non-Metal Plate Laser Cutting Machine · Laser Power 130–300W
Key Features
Lightweight, Low-Resonance Beam
Built with a high-strength aluminum alloy beam, the CMH1325C-G-B stays light yet rigid, keeping resonance low and motion smooth even during fast, complex cutting paths.
Clean Edges, No Rework
A high-quality laser light source produces burr-free cutting results, so parts come off the bed ready to use without additional secondary finishing.
Stable Up to 24 m/min
An upgraded and optimized axis design pushes cutting speed up to 24 meters per minute while preventing Y-axis shake, keeping accuracy consistent even at high speed.
Vision-Guided Cutting in 3 Steps
An in-house visual recognition system takes the job from artwork straight to processing in just three steps, with graphic layout, corner smoothing, and multi-point positioning handled automatically.
Also included: professional nesting software for cutting multiple irregular shapes at once, an air-extraction system with synchronous follow-up blowing to clear smoke and reduce fire risk, a portable focusing lens for quick cleaning/replacement, and an optional CCD camera with automatic fire-suppression module.
Technical Parameters
| Model | CMH1325C-G-B |
| Laser Power | 130–300W |
| Working Area | 1300 × 2500 mm |
| Overall Dimension | 3700 × 2050 × 1150 mm |
| Weight | 680 kg |
| Maximum Speed | 24 m/min |
| Transmission Structure | Screw driving system |
| Supply Voltage | AC220V–240V, 50/60Hz |
